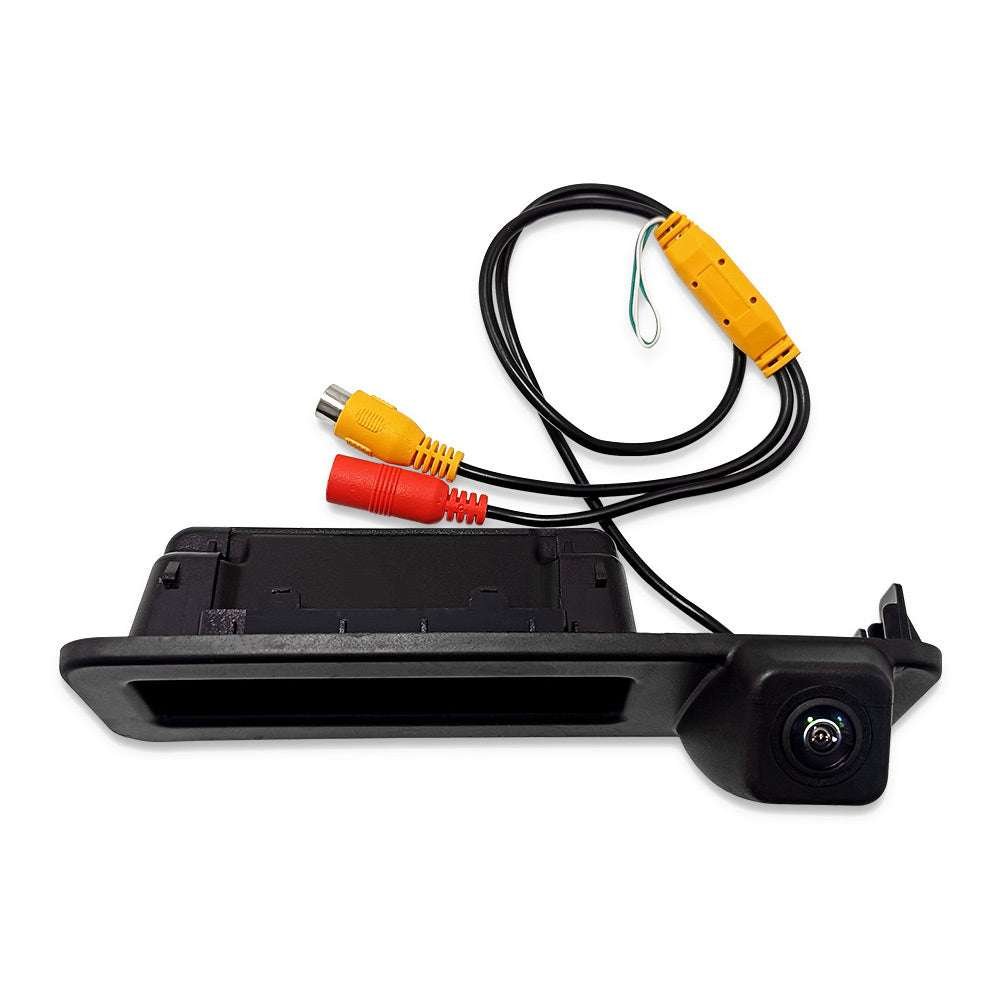

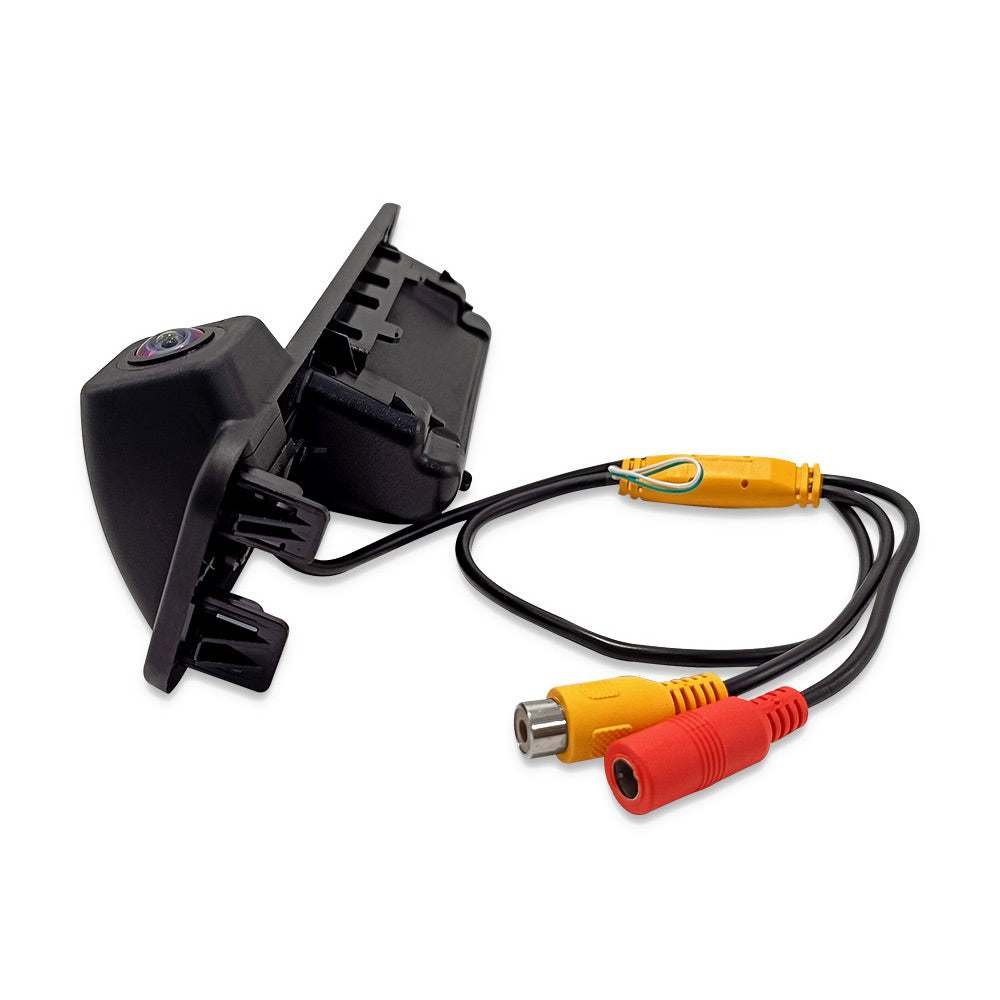

AHD 1080P CCD Trunk Handle Rear View Camera For BMW X1/3 series(2018)

Compatible with:

2018 BMW X1 /3 series   F48/G01

Overview:

* High definition and waterproof

* Distance reference line

* Prevent your car from bumping into others

NOTES:

* It\’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com

   parison with your car trunk handle.

* By default, the camera will be produced as NTSC and with parking lines.

* Important: No LVDS connectors output to original screen.

Rearview camera parameters:

Solution: 1346+885

Sensor: Night vision CMOS

Format: CVBS N/AHD720P 25fps

Pixels: 100W

Interface: BMW head/AV

Angle: Horizontal 140°

Signal-to-noise ratio: ≥43dB

White balance: Automatic

Synchronization mode: Internal synchronization

Working temperature: -20℃-80℃

Waterproof level: IP68

Power adapter: 9V-15V±10%

Working current: 85mA±5mA

Product List:

– 1 x handle Reversing Camera

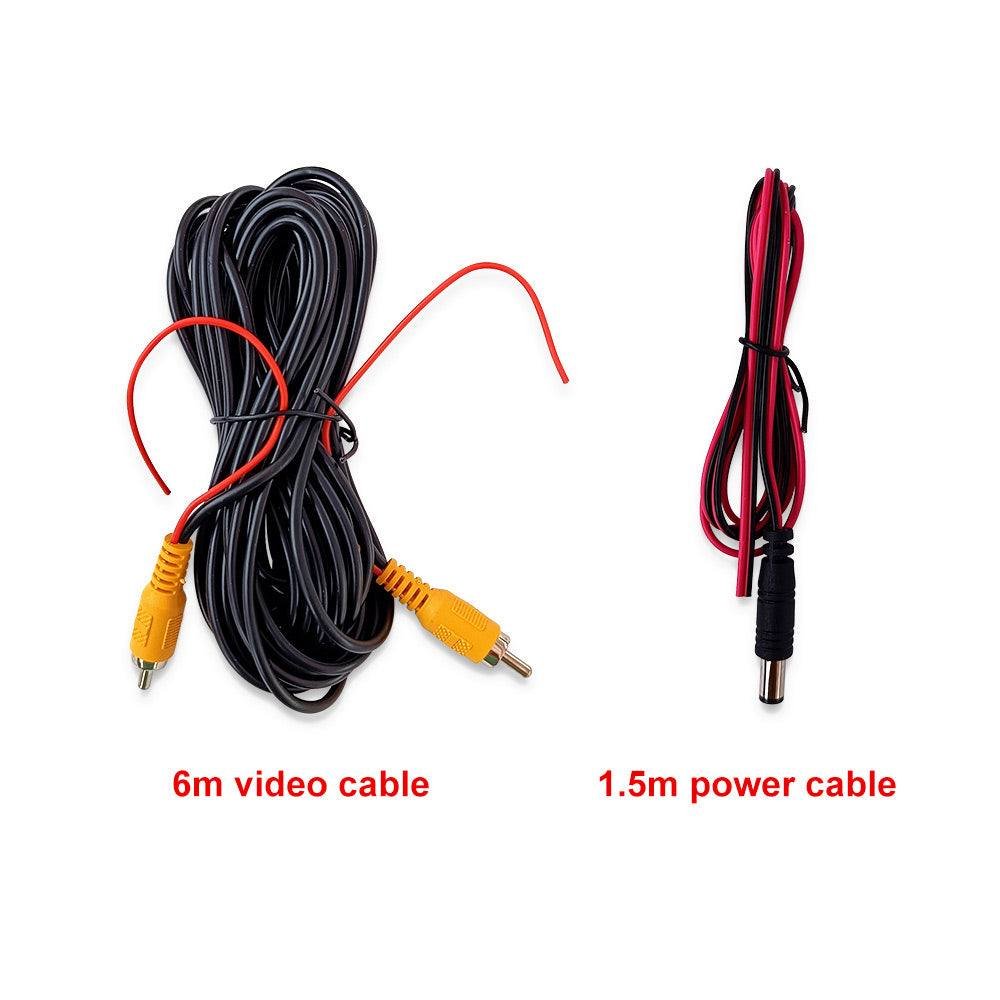

– 1 x Power cable

– 1 x Video cable

16×4.5cm    0.2kg
